Rotated Sealant Spreading Table

Quick Details

• Condition: New
• Machine Type: Insulating Glass Production Line
• Production Capacity: 10 S per piece
• Place of Origin:China (Mainland)
• Brand Name: SAINT BEST
• Model Number: SBT-HZT01/02
• Voltage: 380 V
• Power(W): 0.12kw
• Dimension(L*W*H): 600X700X1050mm
• Weight: 100 kg
• Certification: CE
• Warranty: 1 year
• After-sales Service Provided: Engineers available to service machinery overseas
• Min, glass size:: 175X175mm
• Max. glass size:: 2000X2000mm

Packaging & Delivery

 Product Description

 Insulated Glass Sealant Automatic Spreading Table.

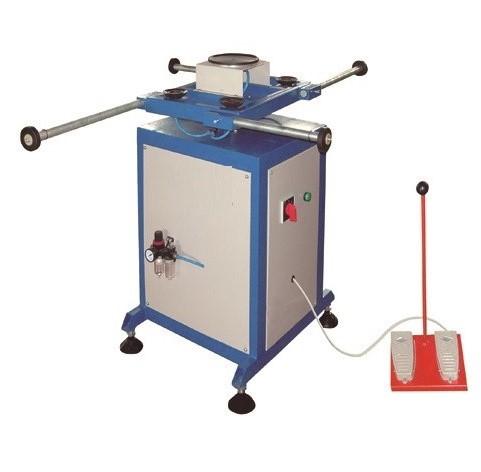

SBT-HZT01 Rotated Sealant Spreading Table is the equipment used in the last procedure

 of production line of insulating glass and curtain wall glass. This machine is rotating platform

used to apply bicomponent silicone on insulating glass and curtain wall glass.

 It can be rotated 90 degree and also is free to be reversed. The rotation and vacuum sucker

can be controlled by programs. The vacuum sucker can be adjusted according to the size of the glass.

 The fitting clearance between  the support bar and the support loop of rotation support plate is

 small and this makes the glass more horizontal. This machine rotates steadily with stable

support and low rate of misfuction. It is the ideal auxiliary equipment for insulating glass

 and curtain wall glass production line.

Features:

 1 It can be rotated 90 degree, 180 degree, 270 degree and 360 degree clockwise and

 counterclockwise.

 2 The length of spreading arm is adjustable according to the size of the glass.

 3 The vacuum generator is used to suck the glass. The sucked glass can be rotated steadily.

 4 The main spare parts of pneumatic sector adopt the famous brands home and abroad

or the supplier with internationally recognized quality certification.

Parameters:

• Electric power :0.12KW 1P220V 50HZ
• Max glass dimension:2000×2000mm
• Min glass dimension:175×175mm
• Outside dimension:600×700×1050mm

Machine Processing

SAINT BEST GROUP  selected each part  carefully , we are strive to quality first when machine  production and test each machine before delivery. So we will provide the best machine for you.Rotated Sealant Spreading Table,Rotating Sealant Spreading Table,Rotated Sealant Sealing Table,Rotating Sealant Sealing Table,Insulating Glass Sealing Table,IGU Sealing Table,DGU Sealing Table,Double Glazing Sealing Table.

Qualit Control

SAINT BEST GROUP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

After machine production finished, the products will be tested in professional ways make sure its performance.Rotated Sealant Spreading Table,Rotating Sealant Spreading Table,Rotated Sealant Sealing Table,Rotating Sealant Sealing Table,Insulating Glass Sealing Table,IGU Sealing Table,DGU Sealing Table,Double Glazing Sealing Table.

Packaging & Shipping

SAINT BEST GROUP produce high quality machines, also pay attention to package.

The machines will be packed with steel pallet and standard export wooden case,

to make sure customer will receive the machines they ordered Intact.Rotated Sealant Spreading Table,Rotating Sealant Spreading Table,Rotated Sealant Sealing Table,Rotating Sealant Sealing Table,Insulating Glass Sealing Table,IGU Sealing Table,DGU Sealing Table,Double Glazing Sealing Table.

Our Services

Before Sale:

Free contact for the most suitable machine

Free professional design for each customer especially.

After sale service :

24 hours technical support by phone, email or skype (email or skype) .

1years  warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Payment Terms :

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal

A,12month warranty

B,1%-2% spare parts

C, OEM&ODM are welcomed

D,Trail orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.Rotated Sealant Spreading Table,Rotating Sealant Spreading Table,Rotated Sealant Sealing Table,Rotating Sealant Sealing Table,Insulating Glass Sealing Table,IGU Sealing Table,DGU Sealing Table,Double Glazing Sealing Table…

Saint Best Group always looking for long term cooperaion, not one time deal

Our Advantage:

Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.Rotated Sealant Spreading Table,Rotating Sealant Spreading Table,Rotated Sealant Sealing Table,Rotating Sealant Sealing Table,Insulating Glass Sealing Table,IGU Sealing Table,DGU Sealing Table,Double Glazing Sealing Table.

FAQ

 1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

 2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

 2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of  parts ,service and guarantee,especially the machine inner electric parts.Rotated Sealant Spreading Table,Rotating Sealant Spreading Table,Rotated Sealant Sealing Table,Rotating Sealant Sealing Table,Insulating Glass Sealing Table,IGU Sealing Table,DGU Sealing Table,Double Glazing Sealing Table.
