China Renewable Design for Coating Machine - 45 Angle Auto Double Glass Edging Machine With 2 Sets Servo Motors , high speed – Saint Best Manufacturer and Factory

Renewable Design for Coating Machine - 45 Angle Auto Double Glass Edging Machine With 2 Sets Servo Motors , high speed – Saint Best

Short Description:

Glass Double Edger With Film Removing Device: Glass Double Edger Production Line Glass Transmission Rate: 0~8m/min Glass Diagonal Error:: ±0.5mm/㎡ Thickness Of Process Glass: Standard 3~25mm Number Of Motors: 22 Certification: CE/ISO9001:2008 Quick Details Condition: New Machine Type: Glass double edger production line/Glass Double Edger with Film Removing Device Production Capacity: 12 sets/month Place of Origin: Guangdong, China (Mainland) Brand Name: SAINT BEST Model Number:&n...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

Our advancement depends over the superior machines, exceptional talents and continually strengthened technology forces for Insulating Glass Hot Press Machine , Double Glazing Making Machine , Roll Heat Press Machine , We are confident that there will be a promising future and we hope we can have long term cooperation with customers from all over the world.

Renewable Design for Coating Machine - 45 Angle Auto Double Glass Edging Machine With 2 Sets Servo Motors , high speed – Saint Best Detail:

Glass Double Edger With Film Removing Device:	Glass Double Edger Production Line	Glass Transmission Rate:	0~8m/min
Glass Diagonal Error::	±0.5mm/㎡	Thickness Of Process Glass:	Standard 3~25mm
Number Of Motors:	22	Certification:	CE/ISO9001:2008

Quick Details

Condition: New
Machine Type: Glass double edger production line/Glass Double Edger with Film Removing Device
Production Capacity: 12 sets/month
Place of Origin: Guangdong, China (Mainland)
Brand Name: SAINT BEST
Model Number: SBT-BYS2522-D
Voltage: 220/380V/480 50Hz/60Hz 3P
Power(W): 56Kw
Dimension(L*W*H):4700*4250*1900mm
Weight: 8100kg
Certification: CE
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Grinding motor supplier: Shanghai ABB
Glass transmission rate: 0~8m/min
Thickness of process glass: Standard 3~25mm
Width of glass chamfering: 0~3mm
Number of motors:22
Error of glass chamfering width: ±0.2mm/m
Error of glass paralle: ±0.2mm/m

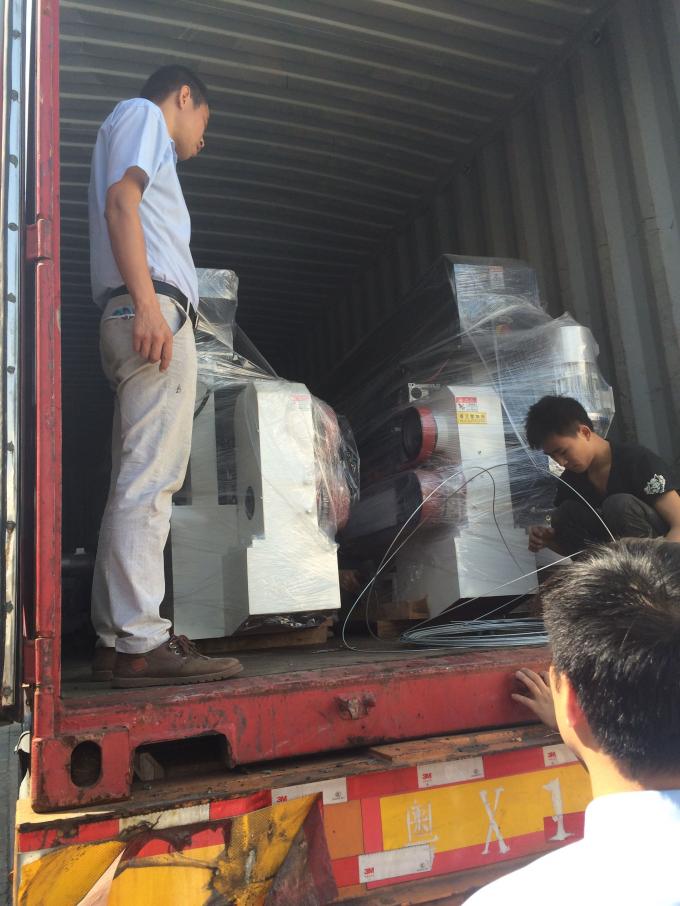

Packaging & Delivery

Packaging Details:	export standard package
Delivery Detail:	Shipped in 60 days after payment

Product Description

SBT-BYL2522-D(22 motors)

Feature:

1) oil lubrication full automatic including all motor slide plate
2) one option or push button use to retrack or move backward all polishing spindle.
3)opening/ closing using gear-rack.
4)Drive using 2 sets 3KW servo motors.
5)opening/ closing using 1 set 1.5KW servo motors.BYL4525(22 motors)

1. The first Double Glass Edging Machine:SBT-BYS4522

and

2. The second Double Glass Edger:SBT-BYS2522

the number of motors :22motors (depends on the customer's requirement)

the width of glass chamfering : 0～3mm

The thickness of process glass :A/B/CType3～25mm;(E type small pieces:2～12mm)
The error of glass parallel: ±0.2mm/m

The error of glass chamfering width: ±0.2mm/m
Glass diagonal error : ±0.5mm/㎡

Width positioning error: ±0.1mm/㎡
Glass transmission rate : 0.5～8m/min

Power source:380/3ph/50Hz ( depends on the customer's requirement)

Glass double pencil edger,6 motors glass double pencil round edge grinding machine,8 motors glass double pencil round edge grinding machine,10 motors glass double pencil round edge grinding machine,Glass double round edging machine,10 motors glass pencil round double edge grinding machine

Arrangement of grinding wheels and distribution diagram of motor power

45 Angle Auto Double Glass Edging Machine With 2 Sets Servo Motors , high speed

Arrangement of grinding wheel and distribution diagram of motor power

Diamond wheel *4, Chamfering resin wheel *14,Resin wheel *2,Polishing wheel*6

45 Angle Auto Double Glass Edging Machine With 2 Sets Servo Motors , high speed

Main Features

45 degree 22 motors configuration 38mm/50mm/75mm of wide conveyor belt,it also can grinding 45 degree bevel edge,the minimal size of the common process glass is 180mm*180mm,minimal thickness 2mm.The thickest size depends on the requirements and the quality of grinding wheel.Glass double pencil edger,6 motors glass double pencil round edge grinding machine,8 motors glass double pencil round edge grinding machine.

This machine has the advanced structures,precision components,exquisite assembly technology,good fittings,stable property,excellent quality,easy operation and simply maintenance.,10 motors glass double pencil round edge grinding machine,Glass double round edging machine,10 motors glass pencil round double edge grinding machine,12 motors glass double pencil round edge grinding machine,14 motors glass double pencil round edge grinding machine.

Processing glass diagonal error within 0.5 mm,parallelism error within 0.1mm,chamfering balance,clear angles,no collapse edge, round edge phenomenon.10 Motors Glass double pencil edger,8 motors Glass double pencil edger,6 motors Glass double pencil edger,12 Motors Glass double pencil edger,14 motors Glass double pencil edger.

It is suitable for processing all kinds of high-grade sealed insulating glass and appliances glass.Can be extended the laser code then identify the automatic control.Glass Straight-line Turning Table,Glass automatic Turning Table,Glass Automatic Turning Table.glass tempering furnace,glass double edging machine,glass straight line beveling edging machine,glass straight line edging machine,glass straight line multilevel edging machine,glass washing machine,glass drilling machine,glass irregular shape machine,glass automatic sandblasting machine,glass chamfering machine and glass automatic cutting machine,glass automatic loading machine.
