High definition Corner Grinding Machine - Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line – Saint Best

Short Description:

2500mm Automatic DGU Line: Automatic Double Glazing Line With Panel Press, Automatic Insulated Glass Production Line: Automatic Insulated Glass Production Machine Full Automatic Insulating Glass Flat Press Line: Automatic Insulating Glass Making Machine Double Glazing Equipment: Insulating Glass Machine Insulating Glass Production Line: Vertical Automatic Insulating Glass Production Line Automatic CNC Insulating Glass Production Line: Hollow Glass Automatic Production Line Vertical ...


Product Detail

Product Tags

Related Video

Feedback (2)

We now have many fantastic staff members customers superior at advertising, QC, and working with varieties of troublesome problem within the generation system for Cnc Glass Machining Center , Automatic Glass Cnc Cutting Machine , Pressing Insulating Glass , We feel that a passionate, ground breaking and well-trained workforce can create fantastic and mutually useful business associations with you quickly. Be sure to really feel totally free to contact us for more particulars.
High definition Corner Grinding Machine - Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line – Saint Best Detail:

2500mm Automatic DGU Line: Automatic Double Glazing Line With Panel Press, Automatic Insulated Glass Production Line: Automatic Insulated Glass Production Machine
Full Automatic Insulating Glass Flat Press Line: Automatic Insulating Glass Making Machine Double Glazing Equipment: Insulating Glass Machine
Insulating Glass Production Line: Vertical Automatic Insulating Glass Production Line Automatic CNC Insulating Glass Production Line: Hollow Glass Automatic Production Line

Vertical Double Glazing Equipment , Fully Automatic Insulating Glass Machine / Production Line Vertical Fully Automatic Double Glazing Glass Making Machine,Automatic Insulated Glass Production LineFully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass LineQuick Details

Condition:New

Machine Type:Insulating Glass Production Line

Production Capacity:2-45 m/min

Place of Origin:Shandong, China (Mainland)

Brand Name:SAINT BEST

Model Number:SBT-LB2510W

Voltage:380V 50HZ

Power(W):45 Kw

Dimension(L*W*H):24200*3200*3600mm

Weight:8000Kgs

Certification:CE

Warranty:2 Years

After-sales Service Provided:

Engineers available to service machinery overseas

Name:Double Glazing Making Machine

Application:Double glazing making

Type:Vertical

Press Section:Inside and outside panel press

Gas filling:Optional

Triple I.G.:Available

Stepped I.G.:Available

Total power:45Kw

Glass washing speed:2-12 m/min

Working speed:2-45 m/min

Packaging & Delivery

Packaging Detailsplastic covering and stretch film package inside.

Delivery Time:70 days after down payment

Product Description



Vertical Double Glazing Glass Making Machine

Vertical Fully Automatic High Efficiency Energy Saving Double Glazing Glass Making Machine Vertical Fully Automatic High Efficiency Energy Saving Double Glazing Glass Making Machine
Vertical Fully Automatic High Efficiency Energy Saving Double Glazing Glass Making Machine Vertical Fully Automatic High Efficiency Energy Saving Double Glazing Glass Making Machine
Vertical Fully Automatic High Efficiency Energy Saving Double Glazing Glass Making Machine Vertical Fully Automatic High Efficiency Energy Saving Double Glazing Glass Making Machine



1. Low-E glass recognition.

2. Both inside assembly and outside assmebly.

3. Suitable for double I.G. unit, triple I.G. unit, stepped I.G. unit and shaped I.G. unit. processing.

4. Gas filling be optional in the press section.

5. Stepped I.G. Unit be adjusted by servo motor.

6. Hydraulic press section.Insulating Glass Automatic Fabrication Line,Automatic Double Glazing manufacturing Line,Full Automatic Insulating Glass Flat Press Line,Automatic Insulating Glass Making Machine,Automatic Double Glazing Making Machine.

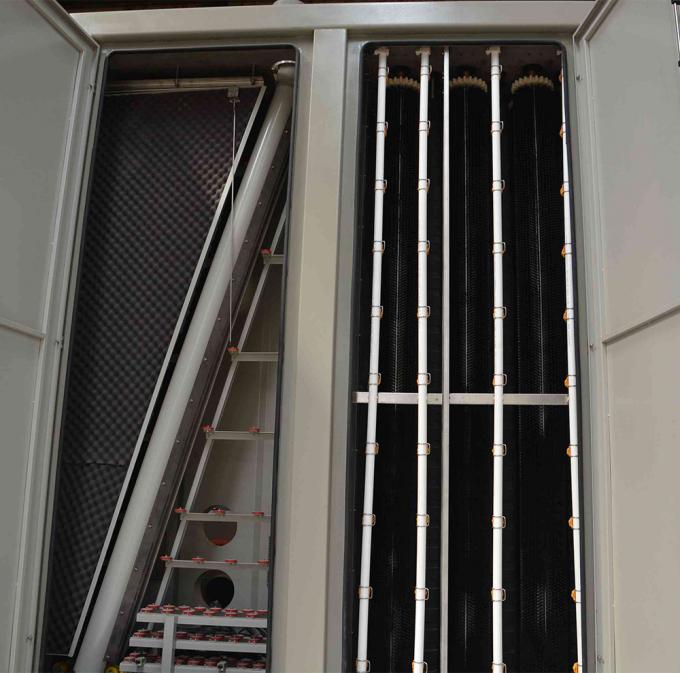

7. Stainless steel covering for washing and drying section.

8. Copper base blocks in washing room.

9. All imported top quality spare parts.





Technical Parameters



Input voltage 380V/50Hz
Input power 45Kw
Air pressure 0.8m3/min
Max. glass size 2500*4000mm
Min. glass size 300*500mm
Pane glass thickness 3-12mm
I.G. unit thickness 12-40mm
Glass washing speed 2-12m/min
Working speed 2-45m/min
Overall dimension 24200*3200*3600mm





Our Services



Guarantee and after sale service:



1. One year guarantee period for whole machine, except the wearing spare parts, such as the saw blade and drill bits.



2. 24 hours technical support by E-mails.



3. 24 hours calling service.



4. Oversea door-to-door service available.



5. User manual and detailed video/CD.Insulating Glass Automatic Fabrication Line,Double Glazing Automatic Fabrication Line,Automatic Insulating Glass Fabrication Line,Automatic Double Glazing Fabrication Line,Insulating Glass Automatic manufacturing Line,Double Glazing Automatic manufacturing Line,Automatic Insulating Glass manufacturing Line,Automatic Double Glazing manufacturing Line.



OTHER AUTOMATIC MACHINE

Automatic Insulating Glass Production Line,Double Glazing Equipment

Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line

Main Technical Parameters

Model SBT-LB2510W SBT-LB2010W SBT-LB1810W SBT-LB1610W
Max glass size 2500×3000mm 2000×3000mm 1800×2500mm 1600×2300mm
Min glass size 540×280mm 540×280mm 540×280mm 540×280mm
Glass thickness 4 -16 mm 4 -16 mm 4 -16 mm 4 -16 mm
IG glass thickness 48mm 48mm 48mm 48mm
Washing speed 2-10m/min 2-10m/min 2-10m/min 2-10m/min
Brush 3pairs 3 3 3
Conveying Speed 45m/min 45m/min 45m/min 45m/min
Power 380v 50Hz 29.5kw 380v 50Hz 29.5kw 380v 50Hz 16.5kw 380v 50Hz 13.5kw
Air compressor Air quantity-0.8m3/min,Air pressure-1Mpa 0.8m3/min,1MPa
Water Water consumption 0.5t/h, ≤50µs/cm
Overall dimension 21900×2500×3500mm 18900×2500×3200mm 18300×2500×2950mm

16500×2500×2750mm



Insulating Glass Automatic manufacturing Equipment,Double Glazing Automatic manufacturing Equipment,Automatic Insulating Glass manufacturing Equipment,Automatic Double Glazing manufacturing Equipment,Insulating Glass Automatic manufacturing Machine,Double Glazing Automatic manufacturing Machine,Automatic Insulating Glass manufacturing Machine



SBT-ASR Automatic Insulating Glass Sealant Sealing Line

Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line



Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line



Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line



Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line

Main feature
1.Integrated frame design in order to minimize the size of complete machine,saving installation space.

2.Automatic sealing discharging function to avoid the pipe blockage cased by human factors.

3.Special design for checking the depth of sealing in order to control the spread of sealing automatically.

4.Two sets of sealing systems can work completely independent(including mixing glue machine). One key switch for changing two component sealant.Automatic Double Glazing manufacturing Machine,Insulating Glass Automatic Fabrication Machine,Double Glazing Automatic Fabrication Machine,Automatic Insulating Glass Fabrication Machine,Automatic Double Glazing Fabrication Machine,Insulating Glass Automatic Fabrication Equipment.

5.In the condition of neatly glass edge and no dislocation,the sealing can be without seam,enrich the corner,quadrilateral smooth surface,no need to repair the corner.

6.Transfer integral V type rubber belt,make the glass transmission smooth and accurate positioning,can realize the processing of ultra small size of glass.

7.Convenient operation system.Double Glazing Automatic Fabrication Equipment,Automatic Insulating Glass Fabrication Equipment,Automatic Double Glazing Fabrication Equipment.



Main parameters SBT-ASR2025 SBT-ASR2535
Max Size of glass 2500(L)×2000(W)mm 3500(L)×2500(W)mm
Min Size of glass 300*180mm 300*180mm
Unit thickness 12-60mm 12-60mm
Sealing depth 3-18mm 3-18mm
Width of aluminum frame 6-24mm 6-24mm
Sealing speed 5-40m/min 5-40m/min
Delivery speed 0-50m/min 0-50m/min
Hydraulic Pressure <100kg/cm&sup2; <100kg/cm&sup2;
Power 10KW 13kw
Air Pressure 0.6-0.8MPa 0.6-0.8MPa
Dimension L820W3500×H2900mm L11010*W3500*H3400mm



Packing and delivery

Plastic Film Package & Wooden Package:

Each product will be carefully packed with plastic film OR wooden case package,to make sure it will be arrived safety.

Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line



Our factory

Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line



SAINT BEST GROUP is a member of China Construction Metal Structure Association of Ministry of Construction. Also with the honor of “China Famous Products”,we are China TOP manufacturer of Aluminum&UPVC Window and Door Processing Machines,and Insulating Glass Processing Machines, with an annual sales of USD2,000,000 from 2012.Insulated Glass Production Line with Automatic Glass Sealing Robot,Automatic Double Glazing Line with Panel Press,Step Glass Production Automatic Assembly Line,Insulated Glass Equipment,Hydraulic Panel Pres Line with Online Argon Gas Filling,Gas Filling IG Line,Insulated glass production line with automatic gas filling,Insulated Glass Machine,Insulated Glass Equipment,Automatic Insulated Glass Machine,Automatic Insulated Glass Equipment,Automatic Insulated Glass Production Line.



At present,our main products include Aluminum&UPVC window and door machines,Curtain wall processing equipment, and Insulating glass processing equipment.In addition,we can design various of non-standard equipment for customers according to different requirements.



Thanks to your trusts and full supports,Saint Best Group has become a large-scale production and development in the past 12 years.Dedicated to strict quality control and thoughtful customer service,we have built long-term relationship with customers in Asia, South Africa and north of America.We also welcome OEM and ODM orders.Automatic Insulated Glass Production Machine,Automatic Insulated Glass Production Equipment,Jumbo Size Double Glazed Units Production Line,Double Glazing Automatic Fabrication Line,Automatic Insulating Glass Fabrication Line,Automatic Double Glazing Fabrication Line,Insulating Glass Automatic manufacturing Line,Double Glazing Automatic manufacturing Line,Automatic Insulating Glass manufacturing Line,Automatic Double Glazing manufacturing Line,Insulating Glass Automatic manufacturing Equipment.







Our Advantage

♦ Well-educated and experienced international sales.

♦ Professional engineers in our R&D department.

♦ CE Certification .

Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line

Why choose Saint Best products??



1.Saint Best product is widely used in almost all the materials which you can think of.



2.Saint Best machine with high precision and high reputation is the most reliable goods you can choose.Double Glazing Automatic manufacturing Equipment,Automatic Insulating Glass manufacturing Equipment,Automatic Double Glazing manufacturing Equipment,Insulating Glass Automatic manufacturing Machine,Double Glazing Automatic manufacturing Machine,Automatic Insulating Glass manufacturing Machine,Automatic Double Glazing manufacturing Machine,Insulating Glass Automatic Fabrication Machine,Double Glazing Automatic Fabrication Machine,Automatic Insulating Glass Fabrication Machine.

3.Saint Best Group has all kinds machines in store, the delivery time is much shorter than other companies.



4.Guarantee the complete machine for 12 months, except the consumable parts.



5.Saint Best Group has international tech service office and provides 24 hours online service and tech support for customers.Automatic Double Glazing Fabrication Machine,Insulating Glass Automatic Fabrication Equipment,Double Glazing Automatic Fabrication Equipment,Automatic Insulating Glass Fabrication Equipment,Automatic Double Glazing Fabrication Equipment,Full Automatic Insulating Glass Flat Press Line,Automatic Insulating Glass Making Machine,Automatic Double Glazing Making Machine, Insulating Glass Automatic Fabrication Line,Hollow Glass Automatic Production Line 2500x5000mm,Double Glazing Machine,Double Glazing Equipment,Insulating Glass Machine.



Services



The engineer is available to travel aboard, help the installation, maintenance and training staff.



By offering this support, we make sure the customer start the business smoothly, to realize win-win cooperation.

We always looking for long term cooperation, not one time deal.Insulating Glass Equipment,2.5x5m Automatic Double Glazing Line,2.5x5m Automatic IG Line for Taiwan Customers Inspection,2.5x5m Automatic IG Line,Automatic Double Glazing Production Line,Automatic Insulating Glass Production Line,Insulating Glass Automatic Production Line,Double Glazing Automatic Line,Insulating Glass Production Line,Vertical Automatic Insulating Glass Production Line,2500mm Vertical Double Glazing Line.

Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line

FAQ

1. What is your warranty terms? All equipment are 12 months guarantee,lifetime maintenance.

2. What is the production and delivery time? Production time is from 15 to 25days. Depending on the quantity and model.

3. Can we use our own shipping agent? Yes, you can.

4. Can we mix the 20ft/40ft/40HQ container? Yes, you can mix it.It depends on the model you order.

5. Can we use our own logo or design for sticker ? Yes, you can. We welcome OEM. Please send email to us more details.

6. If I want to visit your factory, where is the nearest international airport ? Jinan airport is the nearest international airport in Shandong province.

7. What is your Terms of Payment? Terms of Payment: 30% T/T in advance and 70% T/T before shipment.



If your questions are not answered here,feel free to Contact Us.





Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass LineFully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line


Product detail pictures:

High definition Corner Grinding Machine -
 Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line – Saint Best detail pictures

High definition Corner Grinding Machine -
 Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line – Saint Best detail pictures

High definition Corner Grinding Machine -
 Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line – Saint Best detail pictures

High definition Corner Grinding Machine -
 Fully Automatic Insulating Glass Vertical Double Glazing Equipment/Production Line,Full Automatic Insulating Glass Line – Saint Best detail pictures
