Automatic LOW – E Insulated Glass Machine with PLC Control 50m/min,Automatic LOW – E Insulated Glass Equipment,Insulated Glass Machine.Insulating Glass Production Line.

Quick Details

• Condition: New Automatic Low-e Double Glazing Machine
• Machine Type: insulating glass production line
• Production Capacity: 50m/min
• Place of Origin: Shandong
• Brand Name: SAINT BEST
• Model Number: SBT-LB2550W Automatic Low-e Insulating Glass Production Line
• Voltage: 380V 50-60HZ
• Power(W): 13.59kw
• Dimension(L*W*H): 12000x1250x2600
• Weight: 5000kg,
• Certification: CE
• Warranty: 1 Year
• After-sales Service Provided: Engineers available to service machinery overseas
• Product Name: Vertical Insulating Glass Machine Production Line
• Keyword: insulating glass production line
• Place of orign:Jinan
• Input Voltage: 380v
• Power: 13.59kw
• Max glass size: 2500*3000 mm
• Working Speed: 50m/min
• Min glass size: 300*500mm

Packaging & Delivery

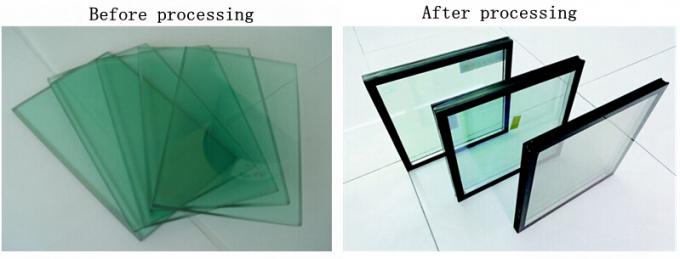

    Vertical Insulating Glass Machine Production Line is a completely automatic insulating glass production line (can produce LOW-E insulating glass).

• Features:

  1. Automatically distinguish the coating side of coated glass and low-E glass.

  2. PLC control system with touch screen operation.

  3. Machine work and fault dynamic display.

  4. Outside assembly lines can produce standard double layer IG and three layers IG.

  5. Lines are available for both of inside and outside panel press, which can produce stepped IG, standard double layer IG and three layers IG (optional).

  6. Designed for curtain wall glass, double layer IG and three layer IG glass.

  7. IG press design-gear and chain synchronous device driven by hydraulic station.

  8. Frequency control designed for glass transmission.

  9. Output: 800 units-single shift 8 hours (double layer IG, size 1m).

  10. Panel press open able, easy for maintenance.



  Parameter:

  1. Power: 27.25kw

  2. Max. glass size: 2500*3000

  3. Min. glass size: 200*450mm

  4. Pane glass thickness: 3-15mm

  5. Max. IG unit thickness: 12-50mm

  6. Glass washing speed: 0-8m/min

  7. Working speed: 0-45m

  8. Air soure (Air pressure): 0.8m3/min (1Mpa)

  9. Water electrical conductivity: ≤50 uS/cm

  10. Overall dimension: 22750x2300x3400mm

The first part: Input Unit

• Conveying/transporting glass sheets to washing and drying unit.
• Automatic drives to pushes the glass into washing and drying unit automatically
• Realize the surface layer of coated glass and LOW-E glass with a sensor

Washing and Drying Unit

• stainless steel and anticorrosion material with all parts;
• Be able to wash Low-E glass;
• Three pairs of brushes, entire rubber rollers;
• Drying part guaranteed by strong blower with hot air;
• Hot water to achieve better cleaness of glass;
• Washing – drying cabinet and blower with noise reducing devices
• The speed of transport can be adjusted.

Cleaness Inspecting Unit

• Also outletting unit after glass washing and drying;
• With lighting tubes on this unit;
• Inspecting whether the glass is clean or not;
• The speed of transport can be adjusted.

Aluminum Spacer Assembly Unit

• used to load aluminum spacer bar;
• The first glass goes into the panes pressing unit first;
• Loading the spacer bar on the second glass;
• Locating blocks make the placement of spacer easier.

Panel Pressing Unit

• Press the two sheets of glass with spacer together;
• Can make step glass;
• Inputting, outputting, panel pressing, all automatically;
• Parameters can be changed easily through the touch screen;
• Press presssure can be adjusted.
• Capable of doing double and triple glazed units

Tilting Table

• Glass sheet can be tilted to horizontal position, easy for transporting or unloading.

SAINT BEST GROUP selected each part carefully , we are strive to quality first when machine production and test each machine before delivery. So we will provide the best machine for you.
